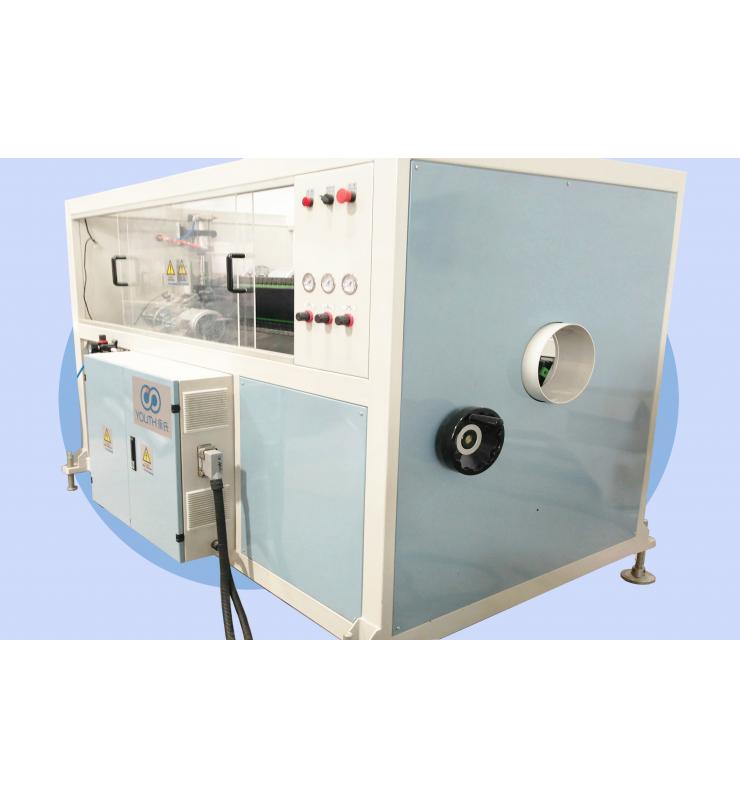

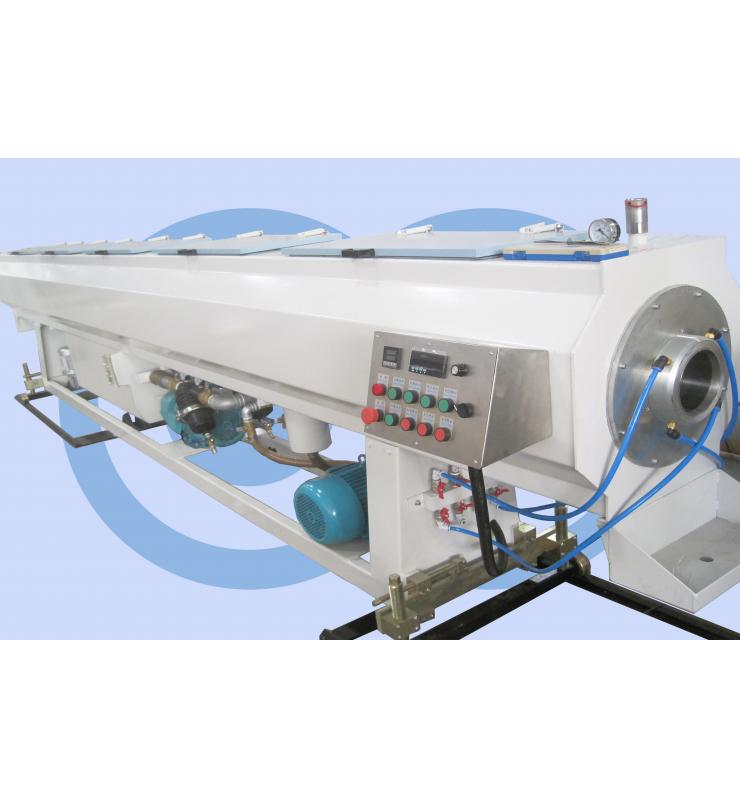

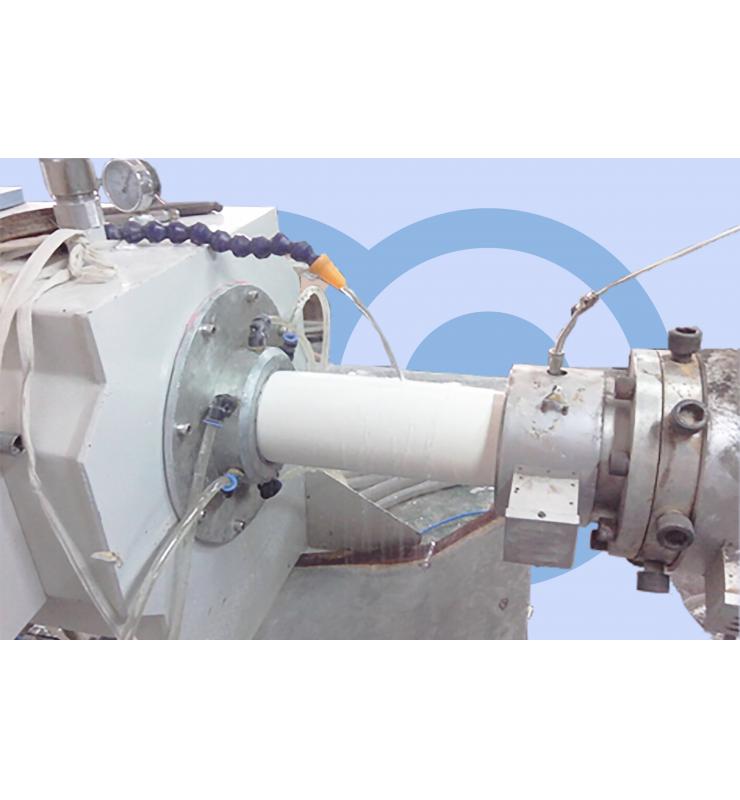

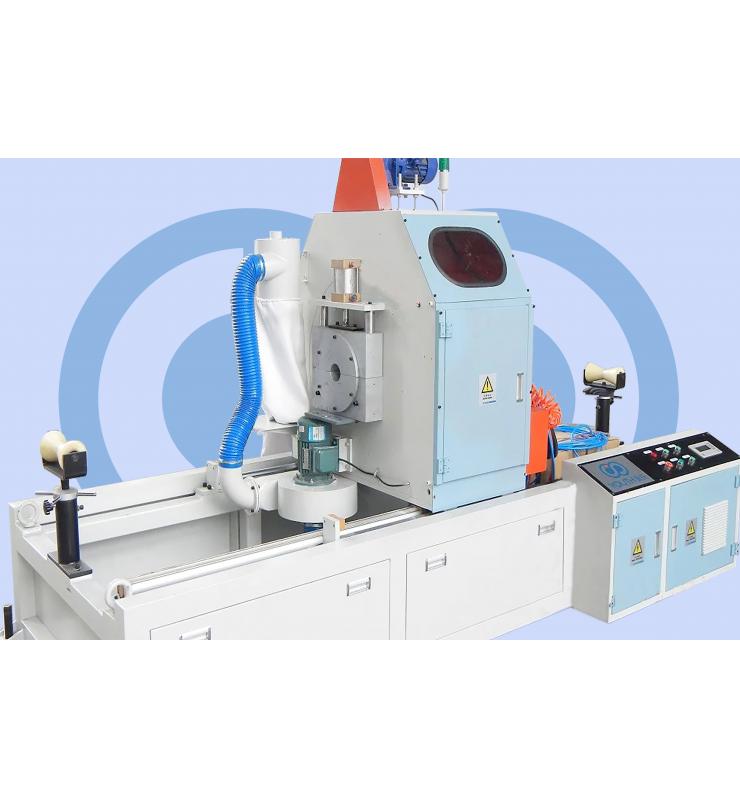

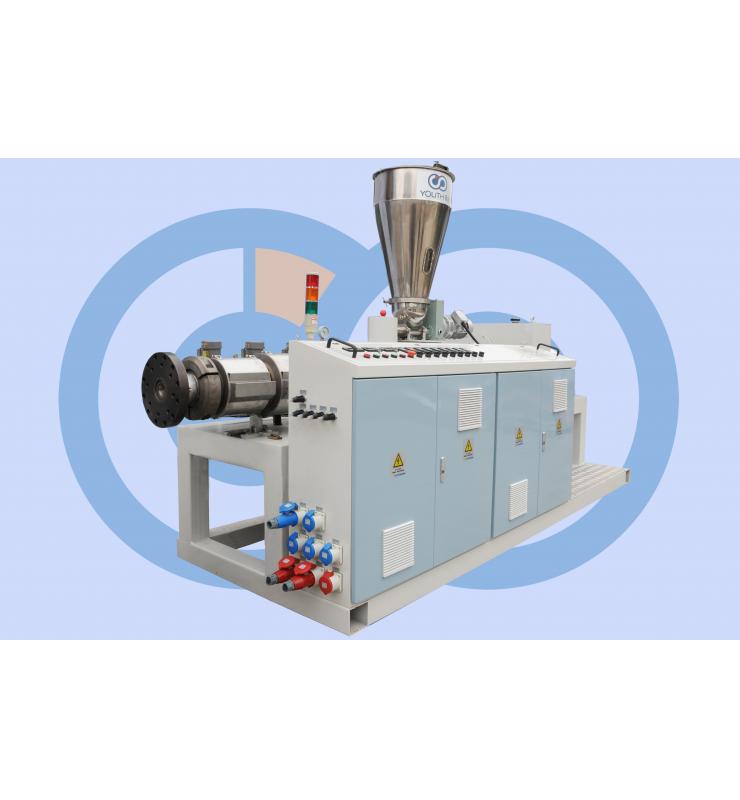

PVC single pipe (1 in 1) extrusion line is made of a 51 or 65 or 80 conical twin screw extruder, one set of 1 in 1 mould, one set of calibration table , haul-off & cutter (dust free) and stacker.The diameter of the best production tube is from16mm to 63mm or 75mm to 160mm, 200-450mm.
Main features: high capacity, low power consumption, low water gas consumption, low occupation, low noise, low dust, etc.
Machine running video as follow
PVC single pipe (1 in 1) extrusion line is made of a 51 or 65 or 80 conical twin screw extruder, one set of 1 in 1 mould, one set of calibration table , haul-off & cutter (dust free) and stacker.The diameter of the best production tube is from16mm to 63mm or 75mm to 160mm, 200-450mm.
Main features: high capacity, low power consumption, low water gas consumption, low occupation, low noise, low dust, etc.
type | pipe dia | extruder | max. output | max.line speed | machine length |
PVC-1-63 | 16-63mm | CTS51 | 180kg/h | 6m/min | 20m |
PVC-1-160 | 75-160mm | CTS65 | 250kg/h | 5m/min | 23m |
PVC-1-400 | 200-400mm | CTS80 | 450kg/h | 4m/min | 25m |
PVC-1-450 | 200-450mm | CTS92 | 650kg/h | 2m/min | 30m |
